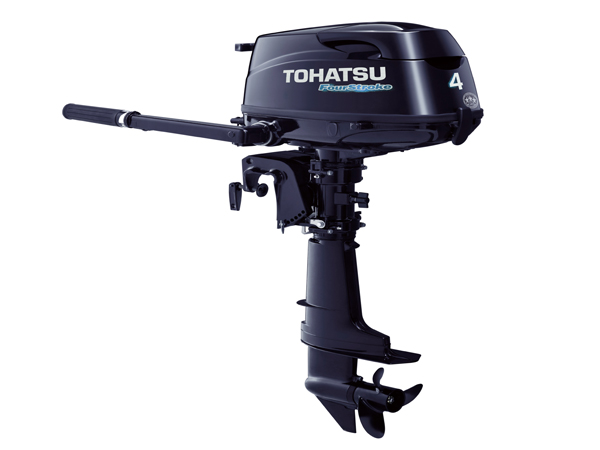

The Tohatsu 4hp outboard motor is a great choice for small fishing boats, small to medium sized inflatables and sailboats. Tohatsu Model MFS4CDL comes equipped with a 20 inch shaft,a twist grip throttle, forward-neutral-reverse gears, and digital CDI ignition are just a few of the features found on the Tohatsu 4hp outboard engine.
The 4hp Tohatsu outboard features an integrated fuel tank for grab-and-go portability. External tank ready connections are built-in which make adding an external fuel tank and line quick and easy.
2018 Tohatsu 4 Hp MFS4CDL Outboard Motor
- Newly Redesigned 2013 “C” Model
- Advanced Digital CD Ignition System
- Low Oil Pressure Warning Indicator
- ESG Over Rev RPM Limiter
- High Grade Marine Alloy Construction
- Stainless Steel Water Pump Housing
- Zinc Coated Water Passages
- Sacrificial Zinc Anodes
- Adjustable Steering Friction Setting
- Forward Mounted Gear Shift Selector
- Twist-Grip Throttle with Tension Control
- Integrated Carrying Handle
- Start-In-Gear Protection
- Thermostatically Controlled Cooling
- Advanced Cross Flow Induction System
- Shallow Water Drive; 6 Trim Positions
- Quiet Through-The-Propeller Exhaust
- 1.15 Liter (.3 Gallon) Integral Fuel Tank
- Safety Lanyard Cut-Off Switch
- Operating Manual & Emergency Tool Kit
- Tohatsu 5-Year Warranty
2018 Tohatsu 4 Hp MFS4CDL Outboard Motor
| MODEL | MFS4CDL |
| MODEL YEAR | 2018 |
| SKU | MFS4CDL-18 |
| WEIGHT | 60.0000 |
| MANUFACTURER | Tohatsu |
| COUNTRY OF MANUFACTURE | Japan |
| HORSEPOWER | 4hp |
| SHAFT LENGTH | 20″ (Long) |
| STEERING | Tiller |
| STARTING | Manual |
| TRIM & TILT | Manual |
| FUEL DELIVERY | Carburetor |
| FUEL TANK | Internal |
| CYLINDER(S) | 1 |
| DISPLACEMENT | 123 cc (7.5 cubic inches) |
| BORE AND STROKE | 59 x 45 mm (2.32 x 1.77 inches) |
| FULL THROTTLE RPM RANGE | 4,500-5,500 RPM |
| IGNITION SYSTEM | Digital CD Ignition |
| INDUCTION SCAVENGING | OHV |
| VALVES PER CYLINDER | 2 |
| FUEL TYPE | Unleaded Gasoline (87 octane) |
| FUEL TANK / FUEL LINE | .3 US Gallon (1.15 Liter) Integral Fuel Tank |
| OIL TYPE | SAE 10W-30 or SAE 10W-40 (SF, SG, SH, SJ) |
| OIL CAPACITY | 15 fl. oz. (450 ml) |
| LUBRICATION | Wet Sump |
| ALTERNATOR | Optional 12V 60W 5A (installation required) |
| COOLING SYSTEM | Water-Cooled, Thermostatically Controlled |
| SALTWATER RATED | YES |
| GEAR RATIO | 2.15:1 |
| GEAR SHIFT | Forward-Neutral-Reverse (front mount shifter) |
| PROPELLER | 7.7″ Dia. X 7.0″ Pitch 3-Blade Aluminum |
| INTERNAL BATTERY | No |
2018 Tohatsu 4 Hp MFS4CDL Outboard Motor
WHAT’S IN THE BOX?
- Integral Fuel Tank (0.3 gal)
- Aluminum Propeller
- Owner’s Manual & Tool Kit
- Tohatsu 5-Year Warranty
