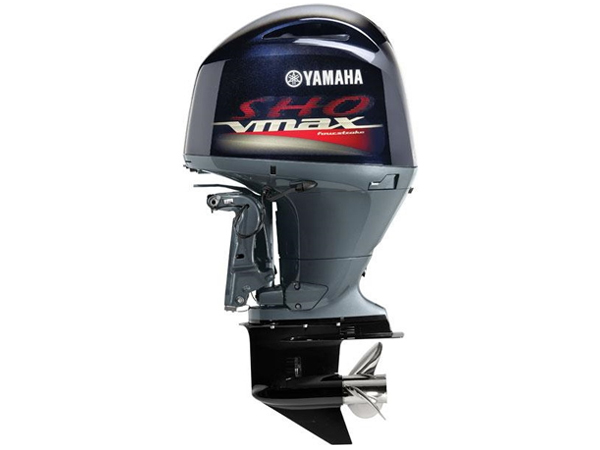

2017 Yamaha VF150 JB VMAX SHO Outboard Motor

Meet the next-gen ln-Line Four V MAX SHOs. Their advanced technology achieves the unthinkable-packing the signature VMAX SHO hole shot, midrange acceleration and super-high-output performance into ingeniously streamlined designs. With 16-valves. double overhead cams and electronic fuel injection, their next-gen tech packages are designed for maximum performance and efficient operation, and their DNA, undeniably V MAX SHO. On a bass or flats boat, or other performance hull, the four-stroke I·4 V MAX SHOs will deliver the exhilarating performance that anglers crave and the competition admires.

2017 Yamaha VF150 JB VMAX SHO Outboard Motor

• 2.8L High Output Four Cylinder

• Double Overhead Camshafts

• 4 Large Radius Valves Per Cylinder

• Variable Camshaft Timing

• 4 Independent Fuel Injectors

• Tuned Long Track Induction System

• Electronic Multi-Point Precision Fuel Injection

• Four-Into-One Exhaust

• Blow-By Gas Reburning System

• Offset Crankshaft

• Counterbalancing technology

• Compact, Lightweight Design

2017 Yamaha VF150 JB VMAX SHO Outboard Motor

Year 2017

Manufacturer Yamaha Marine

Model Name VF150

Trim Name JB

Generic Type (Primary) Four Stroke

Engine

Engine Type In-Line Four-Cylinder

Engine Power 150 HP @ 5500 RPM

Alternator (Output): 50 Amp

Displacement 2785cc (170.0 ci)

Gear Ratio (Primary) (28:14) 2.0:1

Lubrication Wet sump

Fuel Type Induction: EFI (DOHC) VCT

Oil Type (Recommended): Yamalube® 4-M (See Owner’s Manual)

Fuel Type (Recommended): Regular Unleaded (Minimum Pump Octane 89)

Capacities

Oil capacity 4.5L/4.3L w/without filter

Range

Note Full Throttle RPM Range: 5000-6000 rpm

Dimensions

Length Shaft: 20″

Bore 3.78 in. (96 mm)

Stroke 3.79 in. (96.2 mm)

Weights

Dry Weight 480 lb (218 kg)

Features

Exhaust Through Propeller

Intake Design Single Electronically Controlled Throttle Valve

Features C.A.R.B. Rating: 3 Star

Note Gear Shift: Forward, Neutral, Reverse

Note Ethanol Blend Limit: 10% Maximum

Compression Ratio 10.3:1

Cooling Thermostatic Control

Ignition System: TCI Micro Computer

Features Degree of Tilt: 70° | Degree of Trim: -4° through +16°

Starter Electric w/PTT

Warranty

Warranty 3-year Pleasure, 3-year Government, 1-Year Commercial
