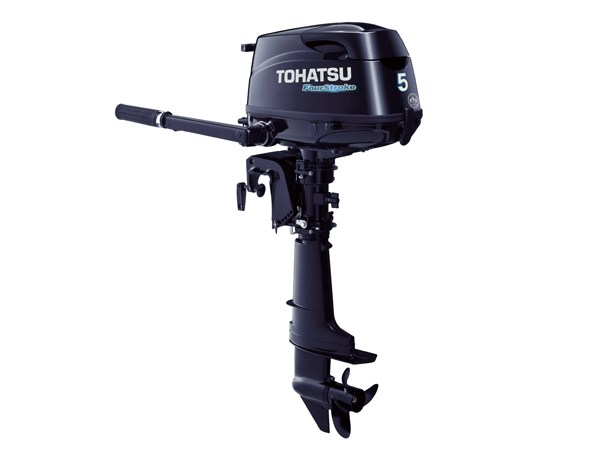

Tohatsu’s 5hp outboard motor delivers outstanding fuel economy and reliability second to none. The Tohatsu 5hp model MFS5CL comes equipped with the 20 inch long shaft and is a great source of portable power for jon boats, skiffs, and inflatables, as well as auxiliary power for sailboats and “kickers” for larger fishing boats.
The Tohatsu 5hp outboard engine shares many 4hp features with the added benefit of a larger carburetor and propeller for increased performance. Fuel is delivered via a portable 3.1 gallon external fuel tank and fuel line (included).).
2017 Tohatsu 5 HP MFS5CL Outboard Motor
- Newly Redesigned 2013 “C” Model
- Advanced Digital CD Ignition System
- Low Oil Pressure Warning Indicator
- ESG Over Rev RPM Limiter
- High Grade Marine Alloy Construction
- Stainless Steel Water Pump Housing
- Zinc Coated Water Passages
- Sacrificial Zinc Anodes
- Adjustable Steering Friction Setting
- Forward Mounted Gear Shift Selector
- Twist-Grip Throttle with Tension Control
- Integrated Carrying Handle
- Start-In-Gear Protection
- Thermostatically Controlled Cooling
- Advanced Cross Flow Induction System
- Shallow Water Drive; 6 Trim Positions
- Quiet Through-The-Propeller Exhaust
- 3.1 Gallon Fuel Tank / Fuel Line
- Safety Lanyard Cut-Off Switch
- Operating Manual & Emergency Tool Kit
- Tohatsu 5-Year Warranty
2017 Tohatsu 5 HP MFS5CL Outboard Motor
| Model | MFS5CL |
| Model Year | 2017 |
| SKU | MFS5CL-17 |
| Weight | 59.0000 |
| Manufacturer | Tohatsu |
| Country of Manufacture | Japan |
| Horsepower | 5hp |
| Shaft Length | 20″ (Long) |
| Steering | Tiller |
| Starting | Manual |
| Trim & Tilt | Manual |
| Fuel Delivery | Carburetor |
| Fuel Tank | External |
| Cylinder(s) | 1 |
| Displacement | 123 cc (7.5 cubic inches) |
| Bore and Stroke | 59 x 45 mm (2.32 x 1.77 inches) |
| Full Throttle RPM Range | 4,500-5,500 RPM |
| Ignition System | Digital CD Ignition |
| Induction Scavenging | OHV |
| Valves per Cylinder | 2 |
| Fuel Type | Unleaded Gasoline (87 octane) |
| Fuel Tank / Fuel Line | 3.1 Gal. Fuel Tank + Quick Connect Fuel Line |
| Oil Type | SAE 10W-30 or SAE 10W-40 (SF, SG, SH, SJ) |
| Oil Capacity | 15 fl. oz. (450 ml) |
| Lubrication | Wet Sump |
| Alternator | Optional 12V 60W 5A (installation required) |
| Cooling System | Water-Cooled, Thermostatically Controlled |
| Saltwater Rated | Yes |
| Gear Ratio | 2.15:1 |
| Gear Shift | Forward-Neutral-Reverse (front mount shifter) |
| Propeller | 7.7″ Dia. X 8.0″ Pitch 3-Blade Aluminum |
| Internal Battery | No |
2017 Tohatsu 5 HP MFS5CL Outboard Motor
What’s in the box?
- Fuel Tank (3.1 gallon)
- Quick Connect Fuel Line
- Aluminum Propeller
- Owner’s Manual & Tool Kit
- Tohatsu 5-Year Warranty
