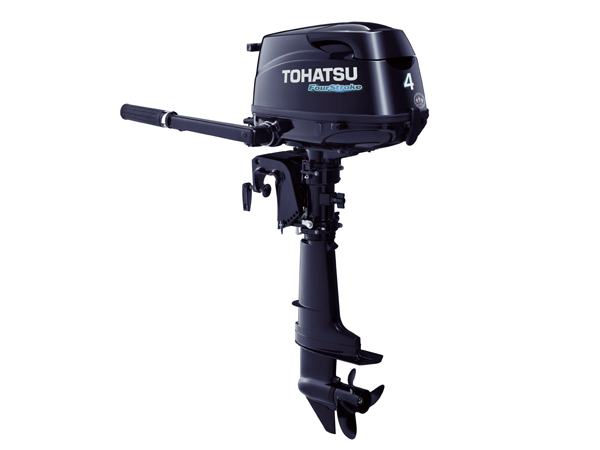

The Tohatsu 4hp outboard motor is a great choice for small fishing boats, small to medium sized inflatables and sailboats. Tohatsu Model MFS4CDL comes equipped with a 20 inch shaft,a twist grip throttle, forward-neutral-reverse gears, and digital CDI ignition are just a few of the features found on the Tohatsu 4hp outboard engine.
The 4hp Tohatsu outboard features an integrated fuel tank for grab-and-go portability. External tank ready connections are built-in which make adding an external fuel tank and line quick and easy.
2017 Tohatsu 4 HP MFS4CDL Outboard Motor
- Newly Redesigned 2013 “C” Model
- Advanced Digital CD Ignition System
- Low Oil Pressure Warning Indicator
- ESG Over Rev RPM Limiter
- High Grade Marine Alloy Construction
- Stainless Steel Water Pump Housing
- Zinc Coated Water Passages
- Sacrificial Zinc Anodes
- Adjustable Steering Friction Setting
- Forward Mounted Gear Shift Selector
- Twist-Grip Throttle with Tension Control
- Integrated Carrying Handle
- Start-In-Gear Protection
- Thermostatically Controlled Cooling
- Advanced Cross Flow Induction System
- Shallow Water Drive; 6 Trim Positions
- Quiet Through-The-Propeller Exhaust
- 1.15 Liter (.3 Gallon) Integral Fuel Tank
- Safety Lanyard Cut-Off Switch
- Operating Manual & Emergency Tool Kit
- Tohatsu 5-Year Warranty
2017 Tohatsu 4 HP MFS4CDL Outboard Motor
| Model | MFS4CDL |
| Model Year | 2017 |
| SKU | MFS4CDL-17 |
| Weight | 60.0000 |
| Manufacturer | Tohatsu |
| Country of Manufacture | Japan |
| Horsepower | 4hp |
| Shaft Length | 20″ (Long) |
| Steering | Tiller |
| Starting | Manual |
| Trim & Tilt | Manual |
| Fuel Delivery | Carburetor |
| Fuel Tank | Internal |
| Cylinder(s) | 1 |
| Displacement | 123 cc (7.5 cubic inches) |
| Bore and Stroke | 59 x 45 mm (2.32 x 1.77 inches) |
| Full Throttle RPM Range | 4,500-5,500 RPM |
| Ignition System | Digital CD Ignition |
| Induction Scavenging | OHV |
| Valves per Cylinder | 2 |
| Fuel Type | Unleaded Gasoline (87 octane) |
| Fuel Tank / Fuel Line | .3 US Gallon (1.15 Liter) Integral Fuel Tank |
| Oil Type | SAE 10W-30 or SAE 10W-40 (SF, SG, SH, SJ) |
| Oil Capacity | 15 fl. oz. (450 ml) |
| Lubrication | Wet Sump |
| Alternator | Optional 12V 60W 5A (installation required) |
| Cooling System | Water-Cooled, Thermostatically Controlled |
| Saltwater Rated | YES |
| Gear Ratio | 2.15:1 |
| Gear Shift | Forward-Neutral-Reverse (front mount shifter) |
| Propeller | 7.7″ Dia. X 7.0″ Pitch 3-Blade Aluminum |
| Internal Battery | No |
2017 Tohatsu 4 HP MFS4CDL Outboard Motor
What’s in the box?
- Integral Fuel Tank (0.3 gal)
- Aluminum Propeller
- Owner’s Manual & Tool Kit
- Tohatsu 5-Year Warranty
