The Mercury 3.5 HP outboard motor model # MLH comes equipped with the long 20 inch shaft, tiller steering and manual start. The Mercury 3.5 HP outboard is perfect for small canoes, tenders and small inflatables. At just 38 Lbs, compact and with an erognamic carry handle this outboard is truly portable. Setting it apart from other outboards in the same HP class, the Mercury 3.5 HP features a larger carburetor for increased performance.

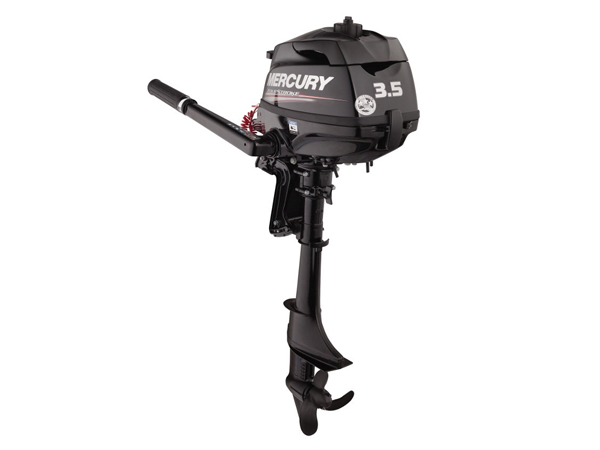

2017 Mercury 3.5 HP 3.5MLH Outboard Motor
- Compact and Lightweight
- Digital CD Ignition System
- High Grade Marine Alloy Construction
- Stainless Steel Water Pump Housing
- Zinc Coated Water Passages
- Rated for Saltwater Use
- Sacrificial Zinc Anodes
- Forward-Neutral Gear Shift
- 360° Steering w/ Tension Feature
- Twist-Grip Throttle with Tension Control
- Integrated Carry Handle
- Thermostat Controlled Water Cooling
- Visual Oil Level Indicator
- Over-Rev Protection
- 4 Trim Level Positions
- Below-The-Water Exhaust
- 1.0 Liter (.30 Gallon) Integral Fuel Tank
- Safety Lanyard Stop Switch
- Owner’s Manual
- Mercury Marine 3-Year Warranty
2017 Mercury 3.5 HP 3.5MLH Outboard Motor
| Model | 3.5MLH |
| Model Year | 2017 |
| SKU | 3.5MLH-17 |
| Weight | 43.0000 |
| Manufacturer | Mercury |
| Country of Manufacture | Japan |
| Horsepower | 3.5hp |
| Shaft Length | 20″ (Long) |
| Steering | Tiller |
| Starting | Manual |
| Trim & Tilt | Manual |
| Fuel Delivery | Carburetor |
| Fuel Tank | Internal |
| Cylinder(s) | 1 |
| Displacement | 5.2/85 |
| Bore and Stroke | 2.16 x 1.42 in |
| Full Throttle RPM Range | 5000-6000 |
| Ignition System | CDI w/electric spark advance |
| Induction Scavenging | OHV |
| Valves per Cylinder | 2 |
| Fuel Type | 87 Octane (up to 10% ethanol content) |
| Fuel Tank / Fuel Line | 0.3 US Gallon (0.95 liter) |
| Oil Type | SAE 10W-30 (Mercury 4-Stroke Outboard Oil) |
| Oil Capacity | 10 fl. Oz. (300 ml) |
| Lubrication | Splash |
| Alternator | Not available on 3.5hp models (4hp & up only) |
| Cooling System | Water-cooled w/thermostat |
| Saltwater Rated | YES |
| Gear Ratio | 2.15:1 |
| Gear Shift | Forward-Neutral w/ 360° Steering for Reverse |
| Propeller | 7.4″ Diameter x 7.0″ Pitch 3-Blade Composite |
| Internal Battery | No |
2017 Mercury 3.5 HP 3.5MLH Outboard Motor
What’s in the box?
- Integral Fuel Tank (0.3 gal)
- Owner’s Manual
- Mercury 3-Year Warranty
- Propeller (Composite)
- Mercury 4-Stroke Oil
- Tool Kit
